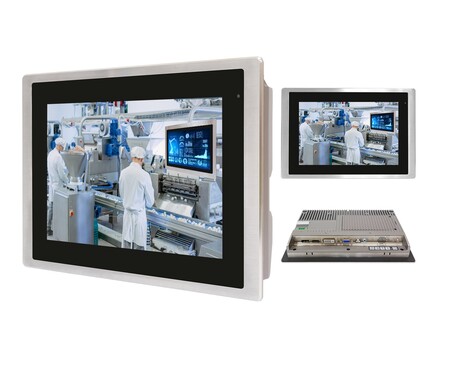

FABS-110: 10.1″ Industrial Display with IP66/69K Stainless Steel Bezel

Click2Contact

The Interworld Electronics FABS-110 is a compact 10.1″ industrial display designed for use in harsh and hygiene-critical environments. Its flat front bezel with IP66/IP69K protection is engineered to withstand high-pressure washdowns, making it suitable for applications in food, beverage, pharmaceutical and chemical industries. A 304 or optional 316L stainless steel front bezel provides enhanced corrosion resistance, while the rugged aluminium die-cast rear housing provides long-term durability, even in harsh environments.

The 10.1″ TFT-LCD screen offers a 1280 x 800 resolution and supports multiple video inputs including VGA, HDMI, DisplayPort and DVI-D for compatibility with existing systems. Touch options include projected capacitive for rugged, multi-touch operation, resistive touch for use with gloves, or a glass-only version for non-interactive applications. A high-brightness panel option up to 1000 nits improves visibility in brightly lit or outdoor conditions. The rear OSD membrane controls provide users with improved usability and a more streamlined integration.

The display supports both panel and VESA mounting, enabling installation into industrial enclosures, machinery or operator stations. It also features a 9–36 VDC wide range power input and operates across a wide temperature range of 0~50˚C, with an extended -20~60˚C option. The unit can withstand vibrations up to 1G and peak acceleration shocks up to 15G. Certified to CE/FCC Class A standards and optionally compliant with EN 1672-2 (projected capacitive and glass models), the FABS-110 is suitable for a range of food & beverage applications requiring hygiene, durability and flexibility.

For more information, visit the Interworld Electronics FABS-110 page.
