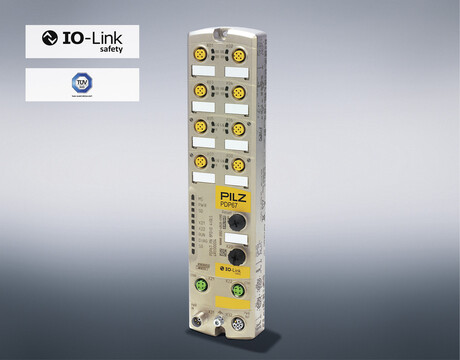

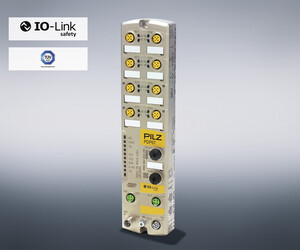

Pilz PDP67 Certified IO-Link Safety Master

Click2Contact

Pilz has introduced an innovation in industrial automation with the IO-Link Safety Master PDP67, which is claimed to be the first certified IO-Link safety master on the market. This development marks a significant step forward in IO-Link technology, enabling seamless communication from the control level right down to the integration of safety-related sensors and actuators. By combining standard automation with functional safety, the PDP67 is designed to provide manufacturers with a future-proof solution for smart factories.

The unit is designed as an all-round device that goes beyond the capabilities of a conventional IO-Link master. It provides safe communication in addition to standard IO-Link functions, acting as a decentralised interface to the higher-level safety controller and enabling point-to-point connections up to field level. Its ports are universally configurable, allowing the processing of safe input and output signals alongside standard signals. This flexibility makes it possible to connect a wide range of devices, including IO-Link and IO-Link Safety components, as well as safety-related digital field devices.

Engineered for maximum versatility, the unit can be installed almost anywhere thanks to its compact and robust die-cast zinc housing, which meets protection classes IP67 and IP69K. It is built to withstand harsh environments, operating in temperatures from -30 to +70°C and at altitudes up to 5000 m. The module supports Profinet and Profisafe communication, features four IO-Link Safety ports, and offers two configurable safe digital inputs or outputs per port. With standardised M12 plug-in connections, wiring is simplified through plug-and-play, while configuration remains straightforward using Pilz tools. An integrated web server is designed to ensure rapid fault diagnostics, reducing downtime and improving efficiency.

Certified to the highest safety standards, including PLe and SIL3, the unit is designed to deliver functional safety without compromising performance. It is suitable for manufacturers seeking to combine safety and automation in a decentralised architecture, ensuring flexibility and ease of use in modern industrial environments.

For more information, visit IO-Link Safety Master PDP67 - Pilz AU or email sales@pilz.com.au.
